The new flange suction hose

The new flange suction hose

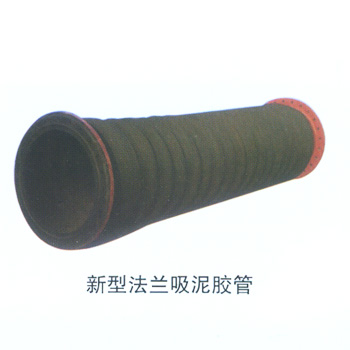

Product Name: New flanged suction hose
Products
Flanged hose excellent overall performance, adaptability to project conditions, resistance to flexion interference, high compressive strength, resistance to Mo loss, easy connection, long life, especially suitable for big waves, harsh conditions of the construction environment.
Main Specifications hose (Unit: mm)

Ship	Lose soil pipe inside diameter	Hose ID	Steel ply layers	Nylon ply layers	Length
200m3/H	Φ400	Φ400	6	16	1400
350m3/H	Φ560	Φ560	6	18	1500
Beaver1600	Φ500	Φ500	6	18	1500
Beaver3800	Φ650	Φ650	8	20	1500
Beaver4600	Φ700	Φ700	8	28	1800
8000绞	Φ850	Φ850	12	34	2000
Trailing Suction13500m3	Φ1000	Φ1000		52	11900

Flanged suction hose key performance indicators

Pilot project	Inner plastic		The outer layer of glue
	National Standards	Our standard	National Standards	Our standard
Tensile strengthMPa	≥11.8	≥15	≥9.8	≥13
Elongation at break%	≥400	≥420	≥400	≥420
Akroncm3/1.61km	≤1	≤0.8	≤1	≤0.8
Shore hardnessA		63±3		63±3
Temperature℃		-40-+60		-40-+60
